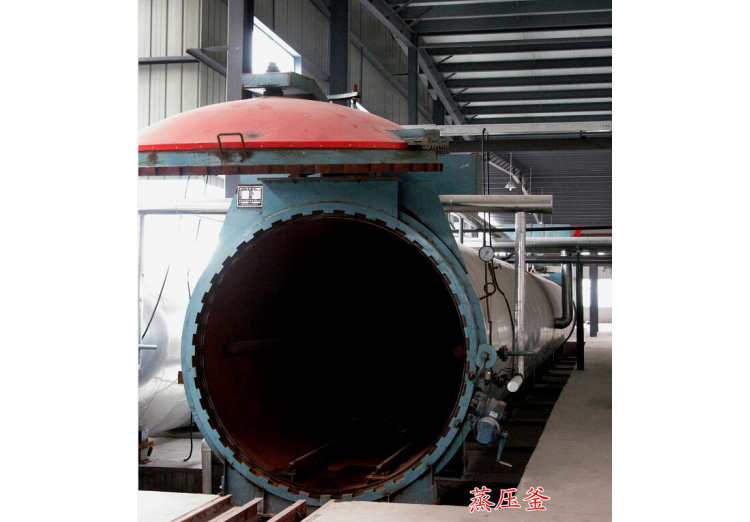

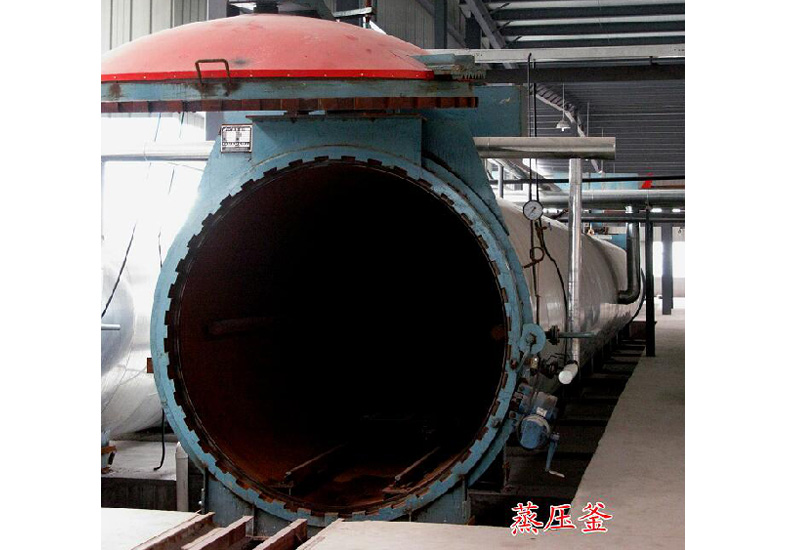

Autoclave for Sand AAC Block machine
Recommended application
In AAC production line, cutted bricks entered into autoclave to steam, Make the brick to reach a certain hardness
Product Description:
The autoclave is the large pressure vessel that can steam the pressurized bricks or normal bricks which is made from aerated concrete blocks, sand and pulverized fly ash, and then complete the reaction of Cao-SiO2-H2O. Besides, the autoclave is also widely used in other productions that need to be steamed with high pressure. Autoclave is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, Glass, Brick, metallurgy, Rubber, military industry. Convenient operation, security and reliable are its advantage
Specification
| No | Inner diamater（m） | Length（m） | Design pressure（MPa） | Working pressure（MPa） |
| 1 | φ2.0 | 21,22.5,26.5（27）,31（31.5） | 1.4 | 1.3 |
| 2 | φ2.5 | 26.5,31（32） | 1.6 | 1.5 |
| 3 | φ2.68 | 26,32,38 | 1.6 | 1.5 |
| 4 | φ2.75 | 26,32,,38 | 1.6 | 1.5 |
| 5 | φ2.85 | 26,32 | 1.6 | 1.5 |
Features
★The manufacturing is safe and reliable, and the structure is reasonable.
★Stable performance, durable.
