Steaming trolley for Sand AAC Block Plant

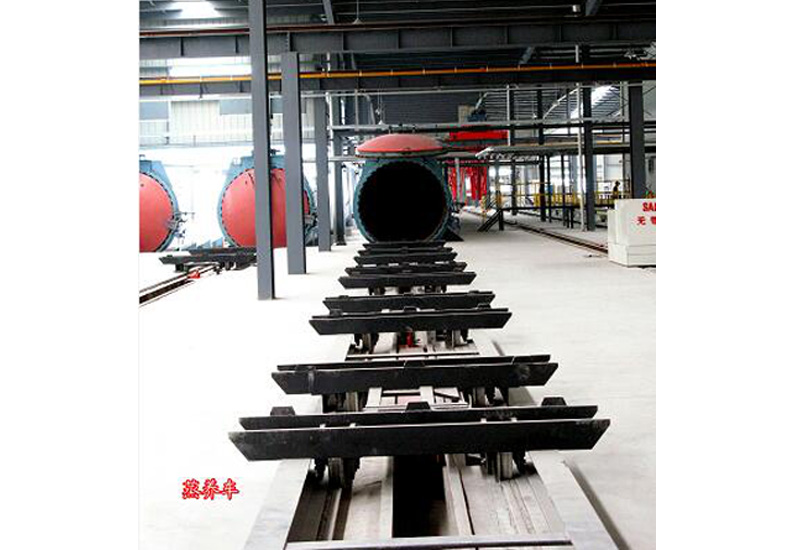

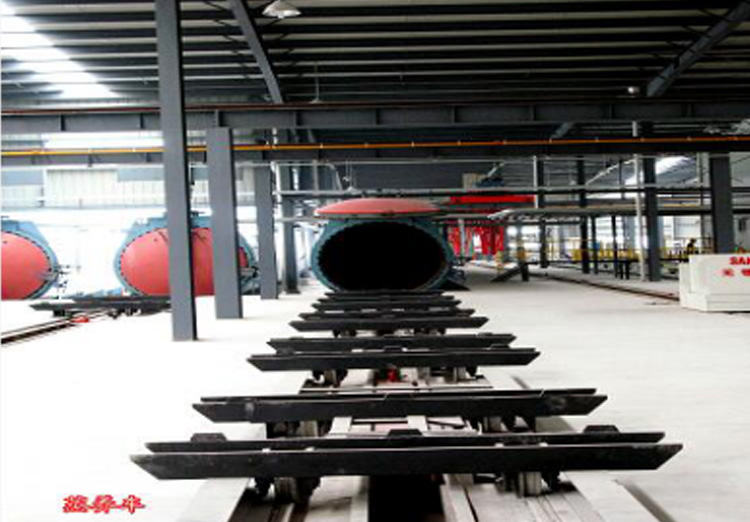

Product picture

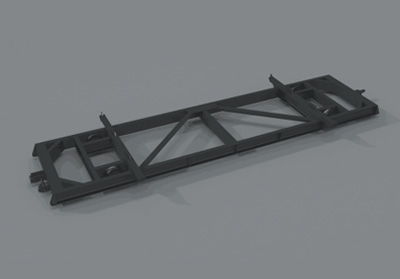

Physical map
Recommended application
Steaming trolley is transportation trolley in AAC production line,loaded cutted cake,entered into autoclave to steam。After steamed,convey finished products to finished product area,unload finished products ,steaming trolley load cake to enter into autoclave again.
Structure
Steaming trolley comprised of trolley frame and wheel.
1.Steaming trolley made of profile steel,has the advantages of good steel property, simple structure and so on.
2.The wheelset comprised of wheel shaft and bearing,rolling sensitivity and reliability.
3.Special decoupling shaft in favor of decoupling.
Working principle
Load double mould/three mould cakes on the steaming trolley(notice:When load first mould,a cushion must be added between the frame and the ground level to prevent the frame from tilting)
Trolley running stable on the ground,there’s hook connected among trolleys,enter into autoclave,then steam,when out of autoclave,transport finished products to packing area,The decoupling device removes the hook.
Specification
Specification(m) Size(mm) | Length | Width |
4.2X0.6 | 4200 | 600 |
4.8X0.6 | 4800 | 600 |
5X0.6 | 5000 | 600 |
6X0.6 | 6000 | 600 |
6X0.6 | 6000 | 600 |
Advantages:
★Durable, not easily deformed, long service life
★No easily damaged parts, easy maintenance and repair.
★Steaming trolley has automatic decoupling device,save labor
